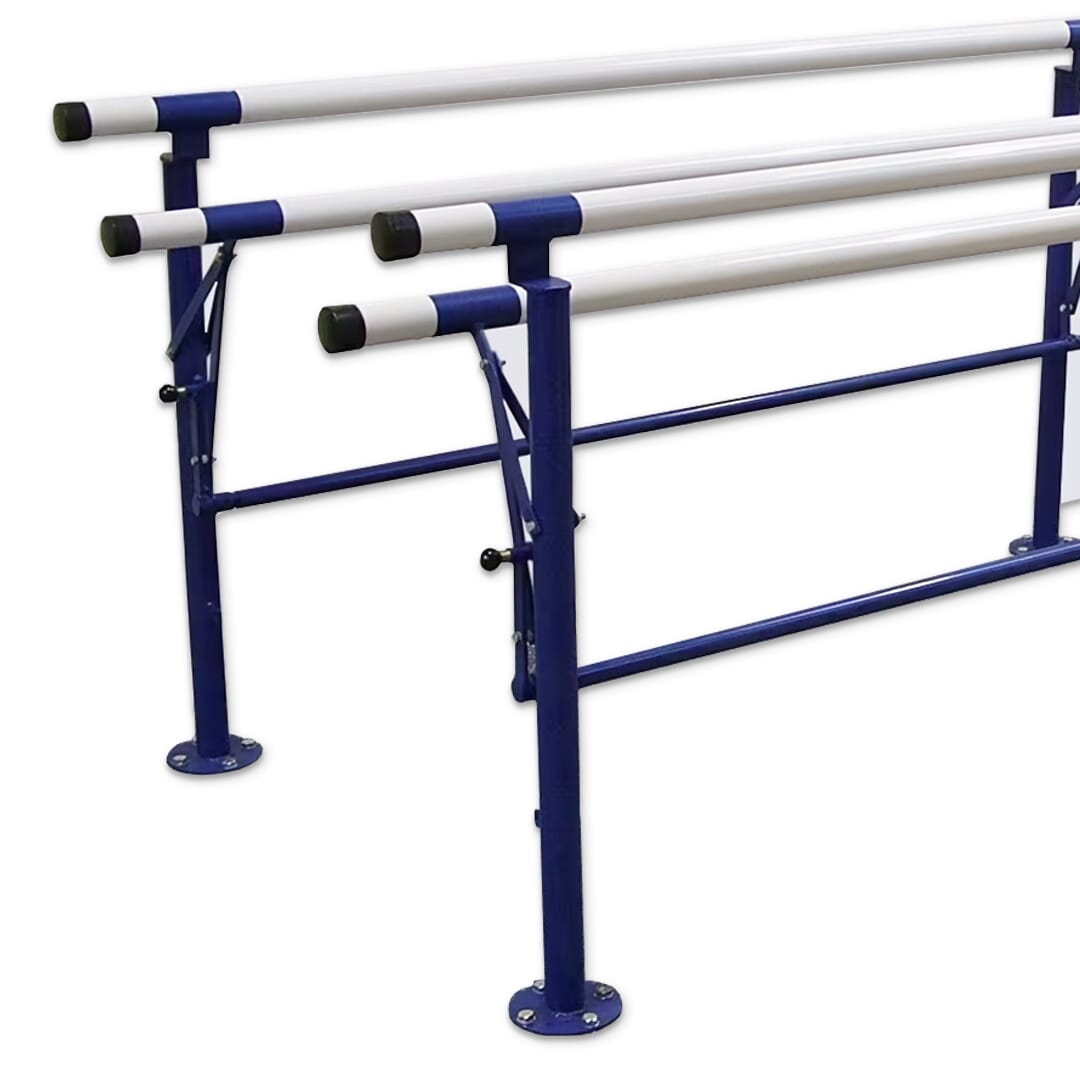

Westminster Double Rail Parallel Bars
Product Details
The Westminster double handrail design features a fixed handrail on each side at a height of 900mm with the addition of a lower second handrail with pivoting adjustment to provide adjustable height from 610mm to 770mm.

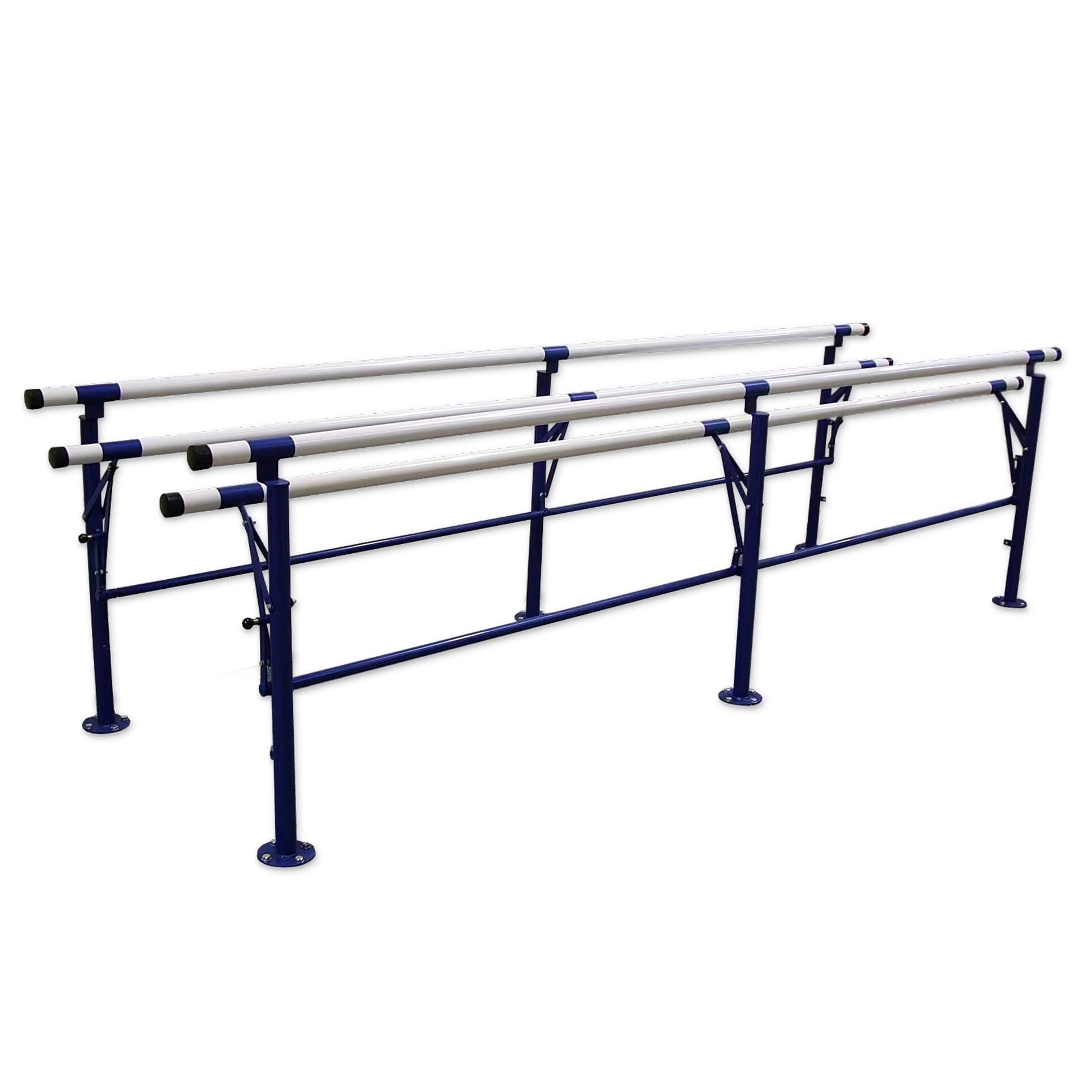

These double handrail models are available in 3 standard lengths for permanent floor fixing or they can be provided mounted onto a wooden base construction for environments where floor fixing is either not suitable or not preferred.
The optional base comes with anti-static carpet or a vinyl floor surface. The vinyl is non-sparkling so it doesn't cause distractions while the anti-static carpet is ideal for environments where there's a possibility of electrostatic discharge.
These bars are made to order in the UK and are usually delivered direct from the manufacturer. Please allow up to 4 weeks for delivery in busy times.
Supplied flat-packed and assembly is straight-forward. If the wooden base is not required, you will need to fix the stanchions to your floor.
Key User Benefits
- Adjustable Height: The double handrail design includes a fixed handrail at 900mm and an adjustable lower handrail ranging from 610mm to 770mm, catering to various user needs.
- Versatile Installation: Available for permanent floor fixing or mounted on a wooden base, making it suitable for environments where floor fixing is not possible or preferred.
- Customizable Surface Options: The optional wooden base comes with a choice of slip-resistant, non-sparkle vinyl or anti-static carpet, ideal for environments sensitive to electrostatic discharge.
- Robust Construction: Supports a maximum user weight of 200kg on the fixed handrail and 140kg on the adjustable handrail, ensuring safety and durability.
- Manufactured in the UK and delivered directly from the manufacturer, ensuring quality and reliability.

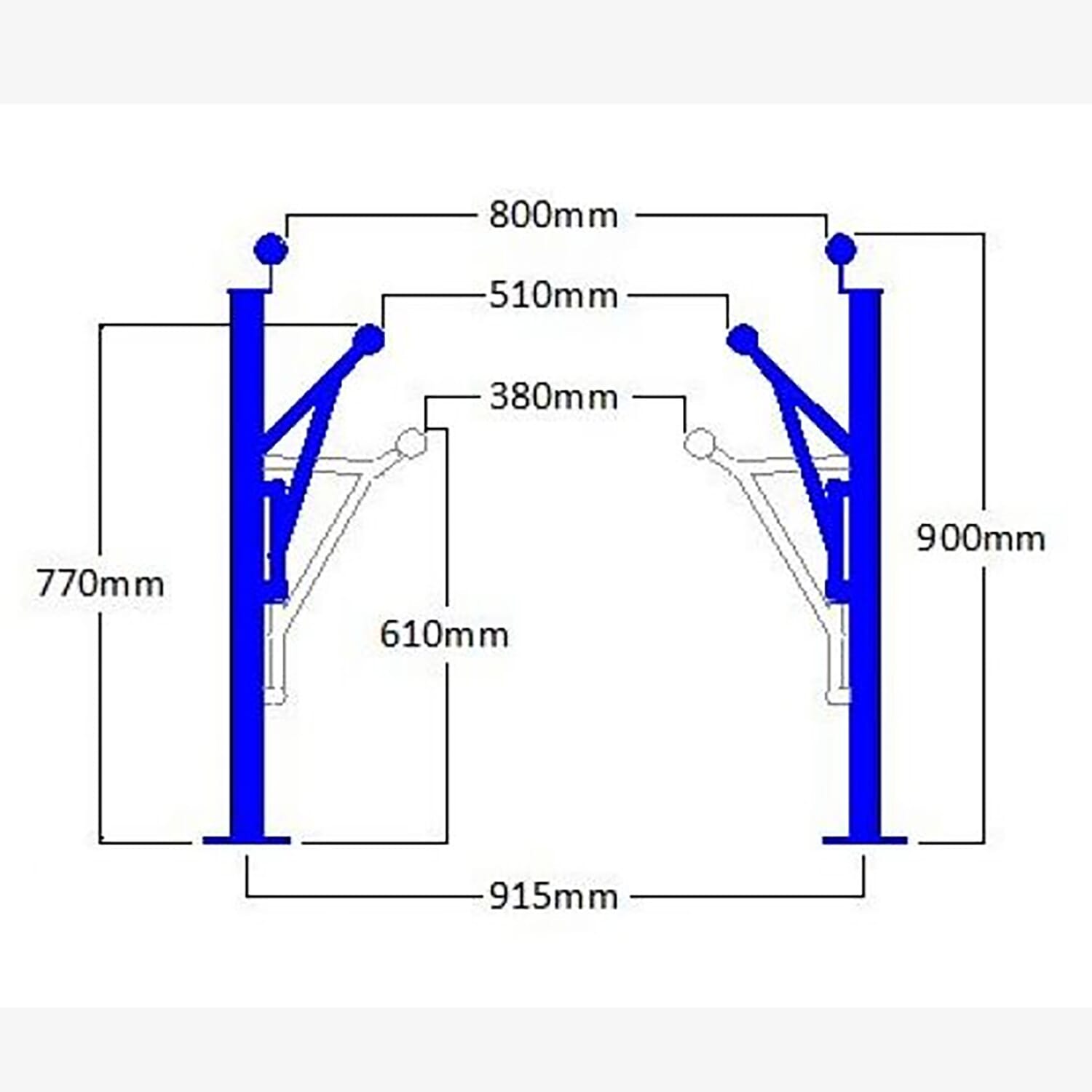

Product Specifications
- Three handrail height settings
- Three handrail width settings
- Handrail diameter: 45mm
- Fixed upper rail height: 900mm
- Min adjustable rail height: 610mm
- Maximum adjustable rail height: 770mm
- Maximum user weight on fixed handrail: 200kg (31stone)
- Maximum user weight on adjustable handrail:140kg (22 stone)

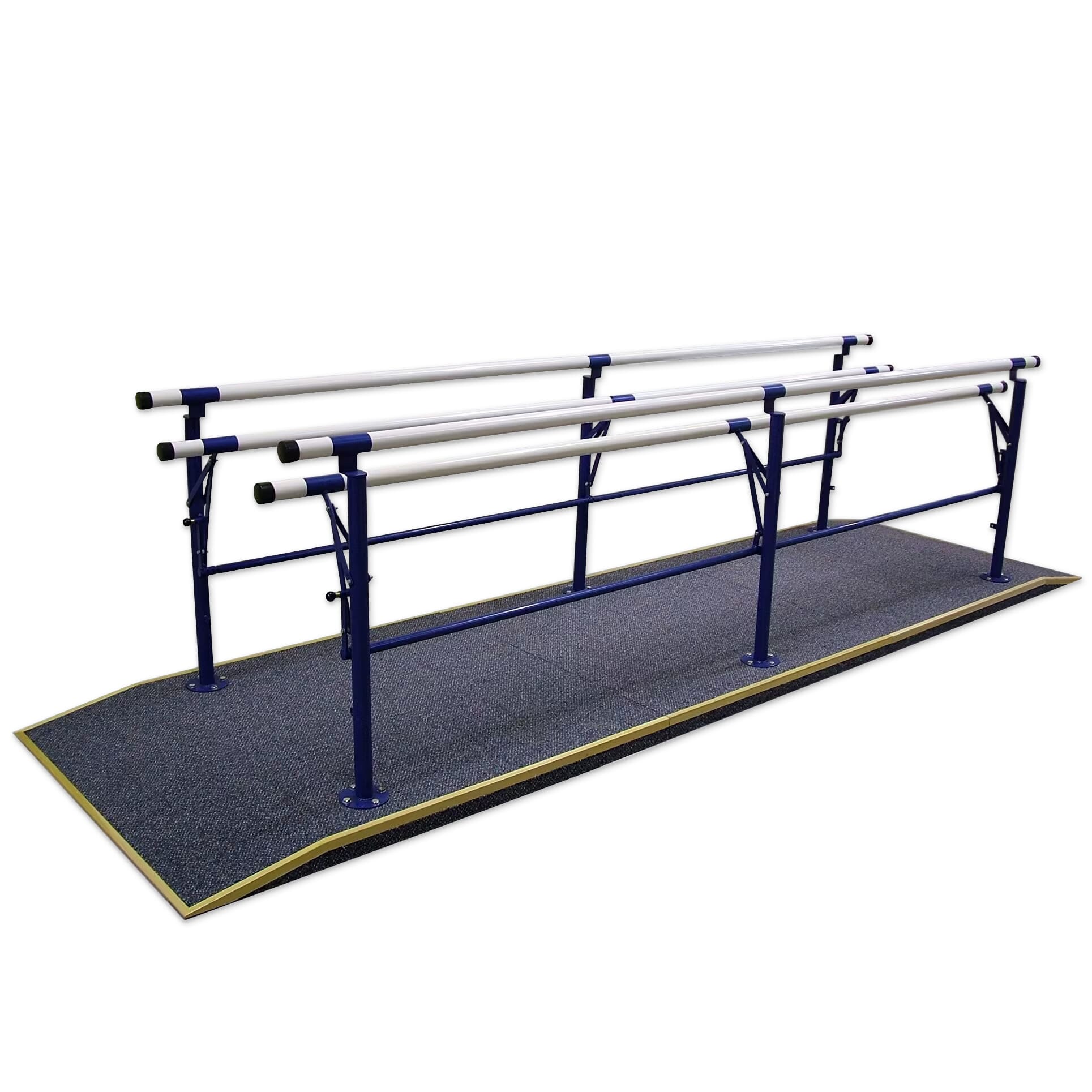

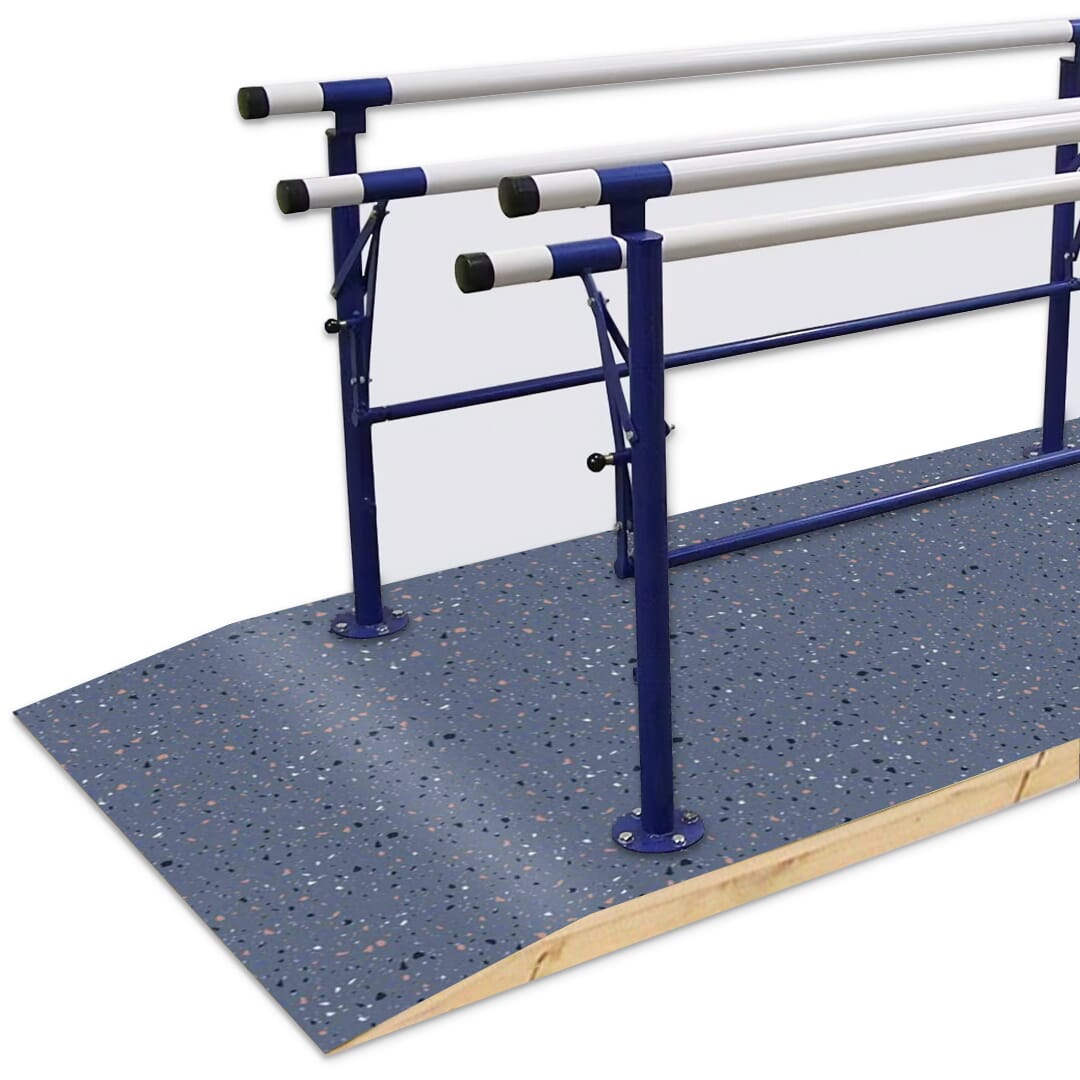

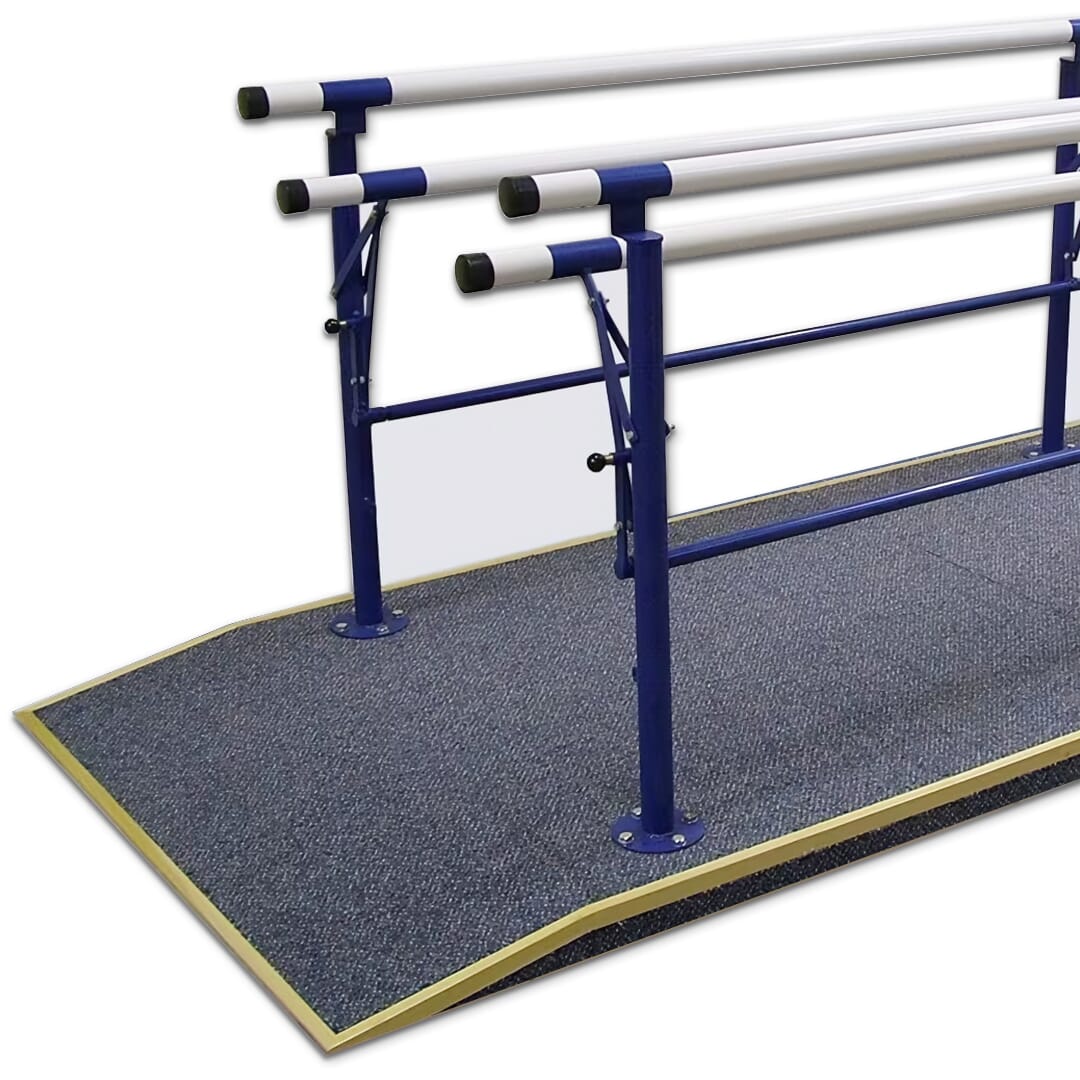

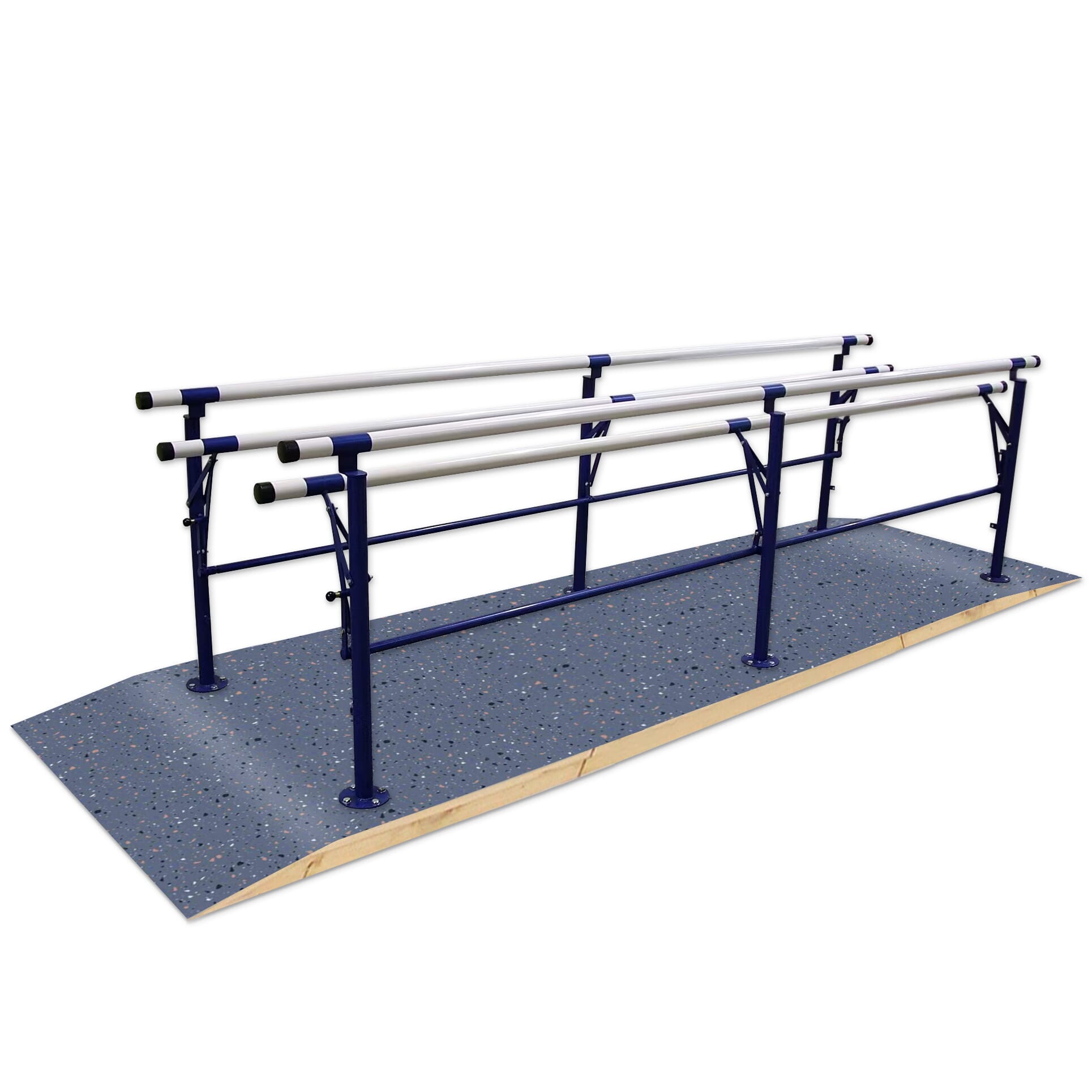

Optional Wooden Base:
- Choice of 2 floor surfaces: slip resistant, non sparkle, vinyl or anti-static carpet
- Inclined at both ends
- Base lengths to fit appropriate choice of bars: 2375mm, 3885mm or 5420mm
- Base width: 1175mm
- Base height: 75mm
