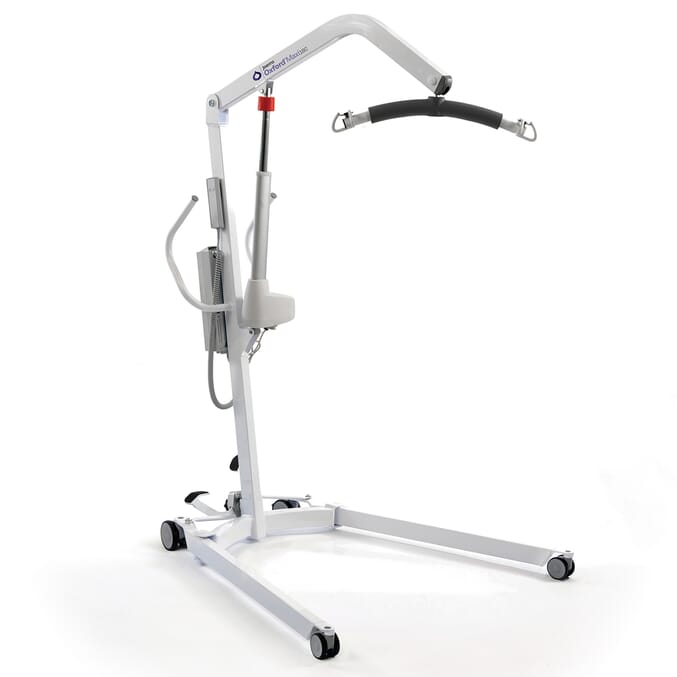

Oxford Maxi Mobile Hoist
Product Details
The Oxford Maxi Mobile Hoist is a highly adaptable lifting solution, offering an impressive maximum lift height of 2 meters from the floor. This feature makes it an invaluable asset in residential spaces and care facilities, including nursing homes and with its remarkable lifting capacity, the electric hoist is well-suited for a wide range of patient lifting scenarios.

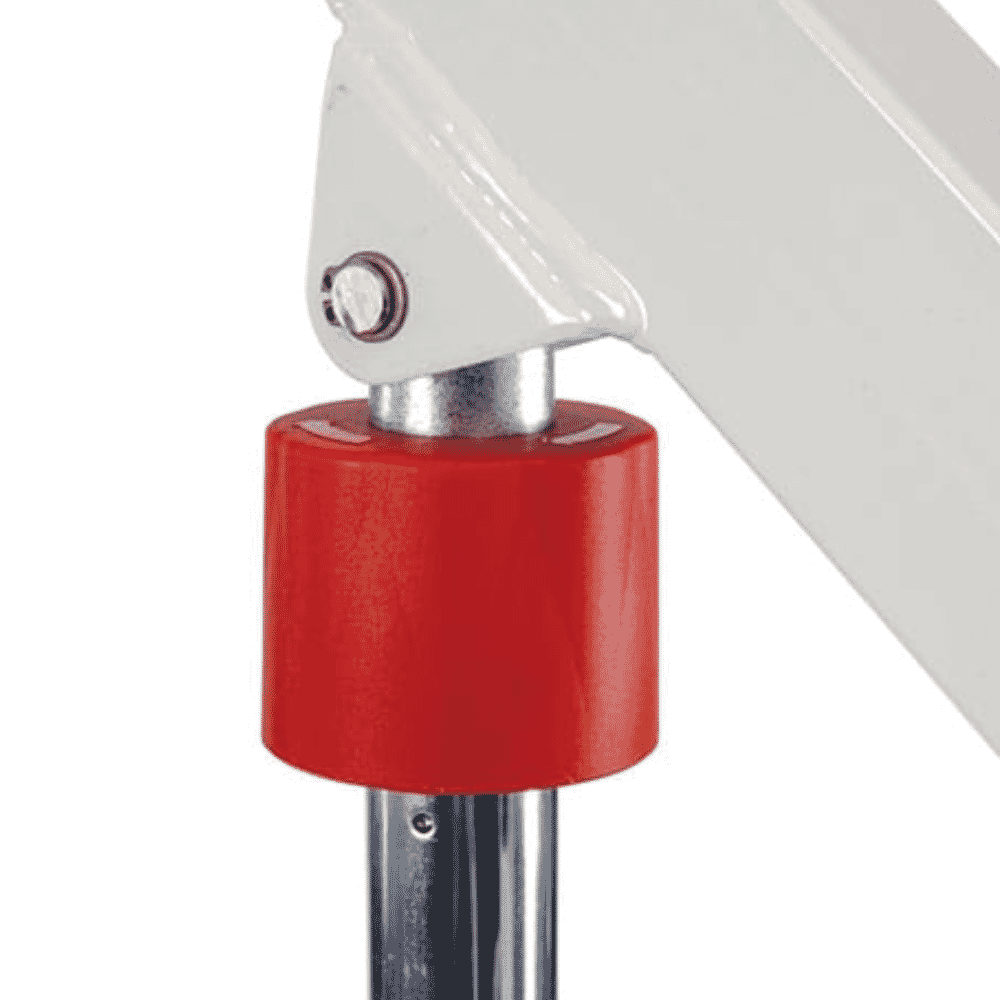

This hoist comes equipped with essential safety features, including an emergency lift and lower function, ensuring precise control when needed. Additionally, it boasts a manual leg spreader that simplifies adjustments for easy access around objects like beds, chairs, and wheelchairs.
The hoist's design incorporates low-profile castors that are easy to manoeuvre and provide the necessary clearance to move smoothly beneath most furniture and across various surfaces. Furthermore, the rear castors are equipped with brakes to enhance safety during use.

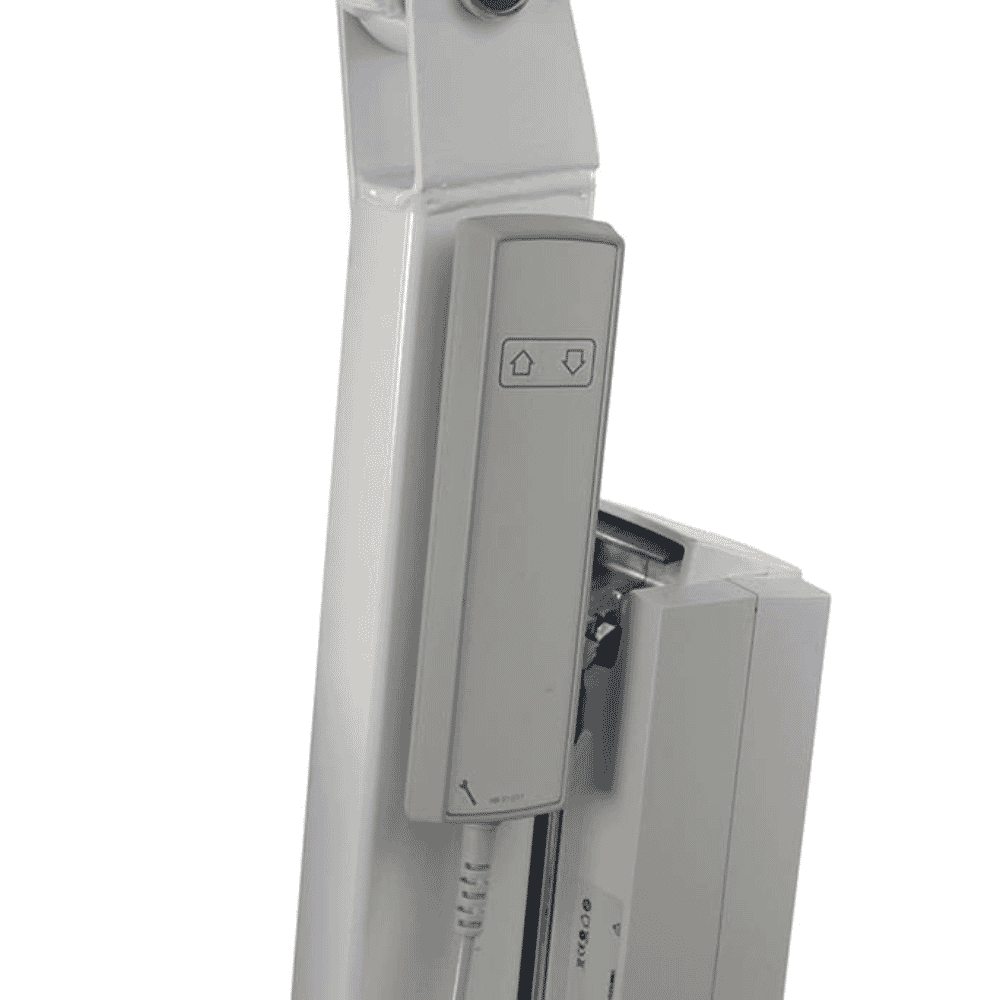

The inclusion of a handheld control adds to the convenience, allowing patients to use it independently while caregivers can have both hands free for additional support. Moreover, the spreader bar is thoughtfully padded to prioritise user comfort and safety.
The Oxford Maxi Mobile Hoist also features practical design elements such as an angled boom to assist with lifting from the floor and a large push handle for effortless manoeuvrability. Despite its impressive capabilities, it maintains a relatively compact frame, ensuring ease of manoeuvring and storage.
In summary, the Oxford Maxi Mobile Hoist offers a winning combination of versatility, safety features, and user-friendly design, making it a dependable and efficient solution for patient lifting across various care settings.
Key User Benefits
- Versatile lifting solution with a 2-meter maximum lift height
- Suitable for residential spaces, care facilities, and nursing homes
- Essential safety features include an emergency lift and lower function
- Manual leg spreader for easy access around furniture and wheelchairs
- Manoeuvre with ease using low-profile castors and rear brakes for added safety
- Handheld control enables patient independence, freeing caregivers' hands
- Padded spreader bar prioritises user comfort and safety
- Practical design elements like an angled boom and large push handle for efficient manoeuvrability and storage
Product Specifications
- Hoist length: 1315mm (52")
- Maximum overall height: 2150mm (85")
- Minimum overall height 1560mm (61")
- Maximum spreader bar height: 1970mm (77")
- Minimum spreader bar height: 780mm (31")
- Spreader bar height at maximum reach: 1420mm (56")
- Spreader bar reach at maximum height: 550mm (22")
- Spreader bar reach at minimum height: 540mm (21")
- Maximum reach: 730mm (29")
- Turning radius: 1310mm (52")
- Legs open (external width): 1230mm (48")
- Legs open (internal width): 1140mm (45")
- Legs closed (external width): 660mm (26")
- Legs closed (internal width): 580mm (23")
- Overall height of legs: 100mm (4")
- Ground clearance: 15mm (0.5")
- Front twin castors: 75mm (3")
- Rear braked castors: 100mm
- Battery type: 2 x 12v rechargeable
- Battery capacity: 3.2 amp per hour
- Mast and boom assembly weight: 24kg (53 lbs)
- Base assembly: 19kg (42 lbs)
- Hoist weight: 43kg (95 lbs)
- Maximum user weight: 180kg (27 stone)
