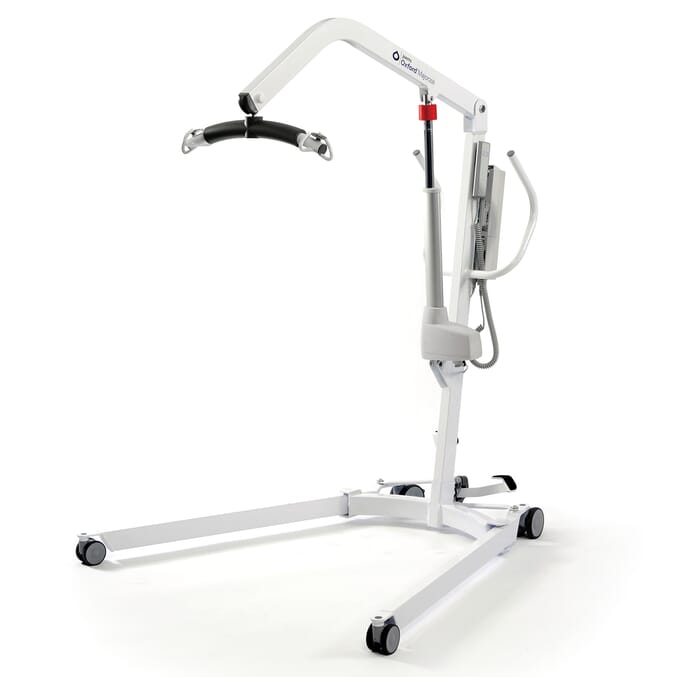

Oxford Major 200 Electric Mobile Hoist
Product Details
The Oxford Major 200 Electric Mobile Hoist is a carefully engineered lifting solution, designed to meet the rigorous demands of nursing and institutional care environments. With a strong focus on both user safety and caregiver convenience, this hoist provides a reliable and efficient method of transferring individuals with limited mobility.
Capable of lifting up to 200kg (31 stone), the Major 200 is suitable for a variety of transfer scenarios, including from the floor, bed, wheelchair, or chair. Despite its robust capacity, the hoist remains lightweight and easy to operate, supporting safe and dignified movement for the user.
Mobility and manoeuvrability are effortless, thanks to the low-profile Tente castors, which smoothly glide across different floor surfaces and slip easily under furniture. The rear castors are equipped with brakes, adding an extra layer of safety during use. A large push handle makes the hoist easy to steer and position, even in tight spaces.

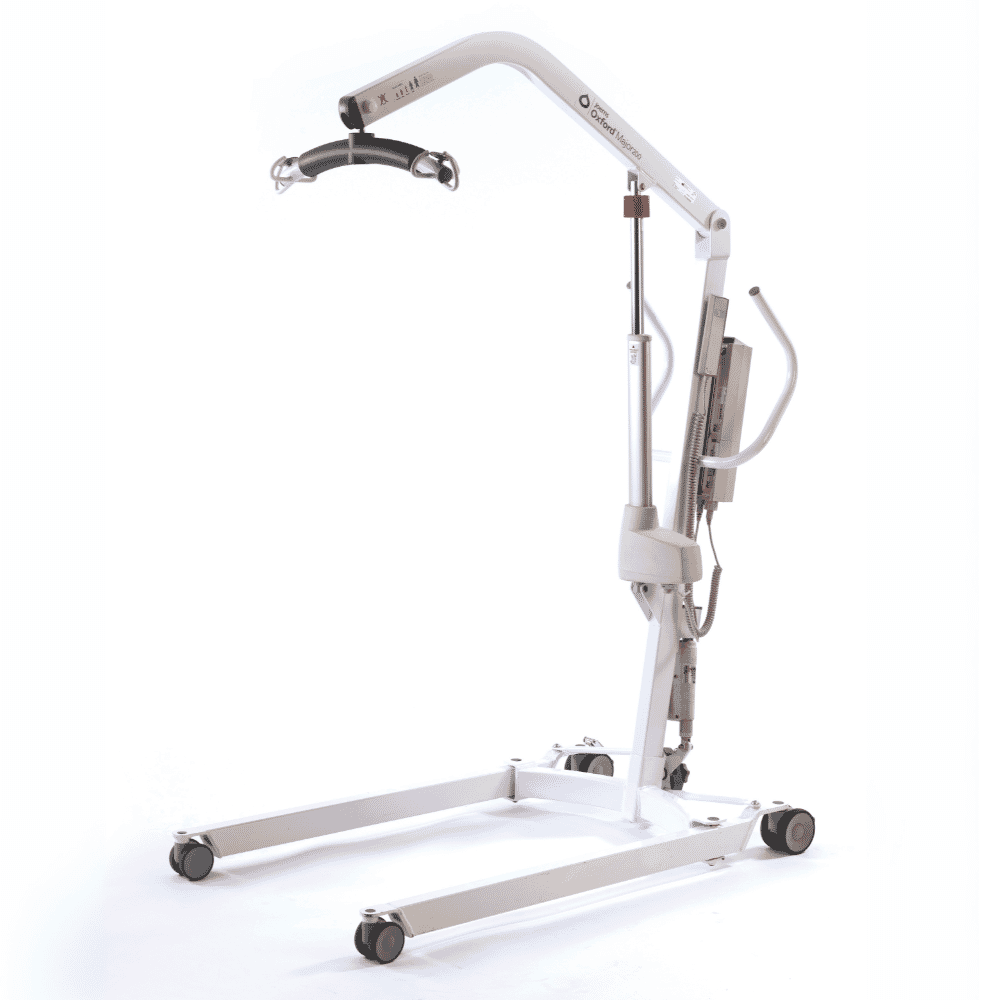

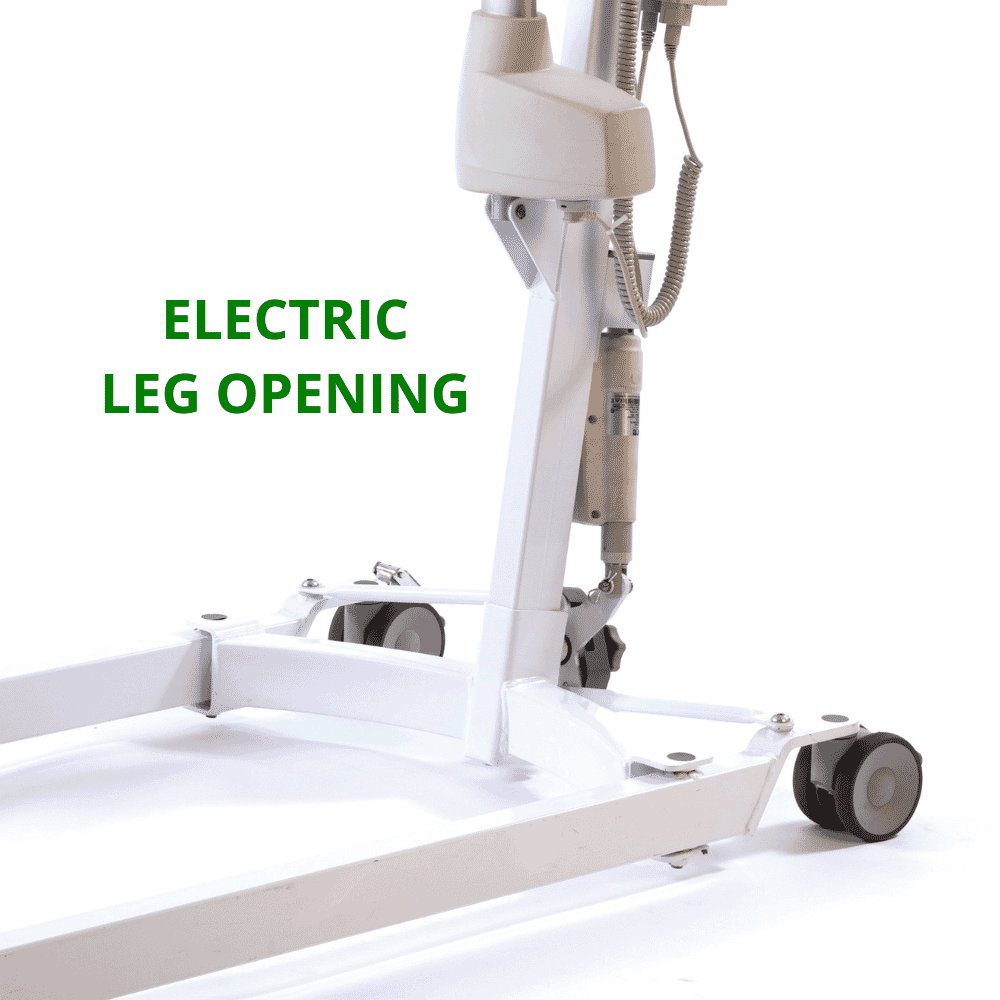

To suit different care preferences and needs, the Oxford Major 200 Electric Mobile Hoist is available in two versions: one with manual leg opening and one with electric leg opening. The manual version features an ergonomic foot pedal mechanism, designed with a secure latch-and-lock system that allows the legs to be adjusted quickly and safely around beds, chairs, and other obstacles. The electric version offers powered leg adjustment, controlled via the handset, which reduces the need for physical effort from the caregiver and simplifies positioning in confined spaces.
The hoist also includes an angled boom, making it ideal for floor lifts, and a padded spreader bar that ensures a safe and comfortable experience for the user during transfers. Additionally, it comes with a built-in Smart Monitor control box, which provides diagnostic feedback and service information. This helps ensure that the hoist remains in optimal working condition and supports ongoing maintenance.
Key User Benefits
- Effortlessly handles demanding transfer tasks
- Lightweight design allows for easy manoeuvrability in various care settings
- Easy-push, low-profile castors glide smoothly under furniture
- Rear castors equipped with reliable brakes
- Angled boom facilitates safe floor-to-chair lifting
- Large push handle ensures smooth steering with minimal effort
- Padded spreader bar enhances patient safety and comfort during transfers
- Onboard diagnostic control box offers operational and service data
- Manual emergency descent function provides an additional layer of safety
Product Specifications
- Hoist length: 1300mm (51")
- Maximum overall height: 1930mm (76")
- Minimum overall height: 1380mm (54")
- Maximum spreader bar height: 1725mm (68")
- Minimum spreader bar height: 525mm (21")
- Spreader bar height at maximum reach: 1200mm (47")
- Spreader bar height at maximum height: 630mm (25")
- Spreader bar height at minimum height: 490mm (19")
- Maximum reach: 720mm (28")
- Turning radius: 1310mm (51")
- Legs open (external width): 1230mm (48")
- Legs open (internal width): 1140mm (45")
- Legs closed (external width): 660mm (26")
- Legs closed (internal width): 580mm (23")
- Overall height of legs: 100mm (4")
- Ground clearance: 15mm (0.5")
- Front twin castors diameter: 75mm (3")
- Rear braked castors diameter: 100mm (4")
- Mast and boom assembly weight: 23kg (3.6 stone)
- Base assembly weight: 19kg (3 stone)
- Total hoist weight: 42kg (6.6 stone)
- Maximum user weight: 200kg (31 stone)
