Marlin Hoist with Electric Leg Opening
Product Details
The Marlin Hoist with Electric Leg Opening is designed to support the safe transfer of the user while giving the carer excellent control.

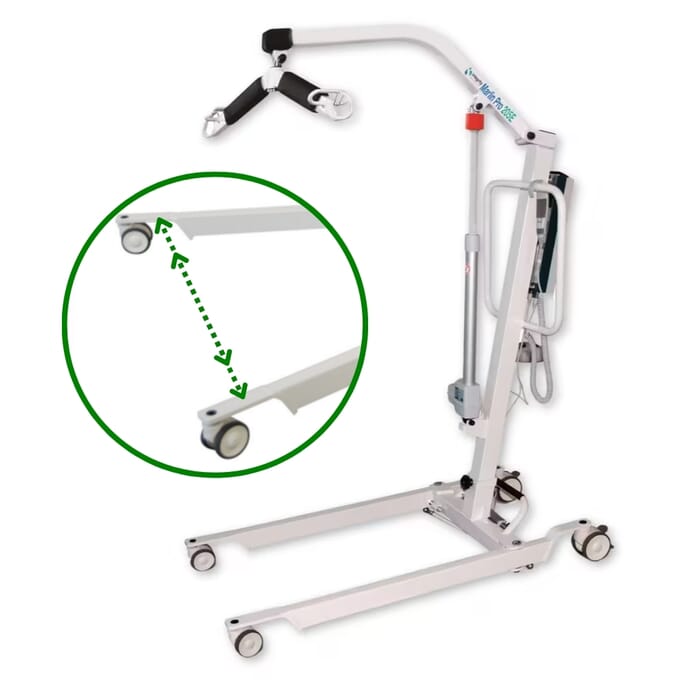

This user-friendly hoist promotes single-handed care, reducing the risk and strain on caregivers. With its electric leg opening and unique foot bar, it offers greater control and ease when positioning the hoist.
Manufactured from high-quality steel with a white powder coating finish, it is easy to clean and ideal for everyday use. The strong and robust design of the Marlin Hoist ensures durability and reliability.
The electric leg opening feature comes as standard, providing carers with enhanced control during use. Safety is a priority, with the hoist equipped with emergency manual lowering and an easy-to-reach emergency stop button.

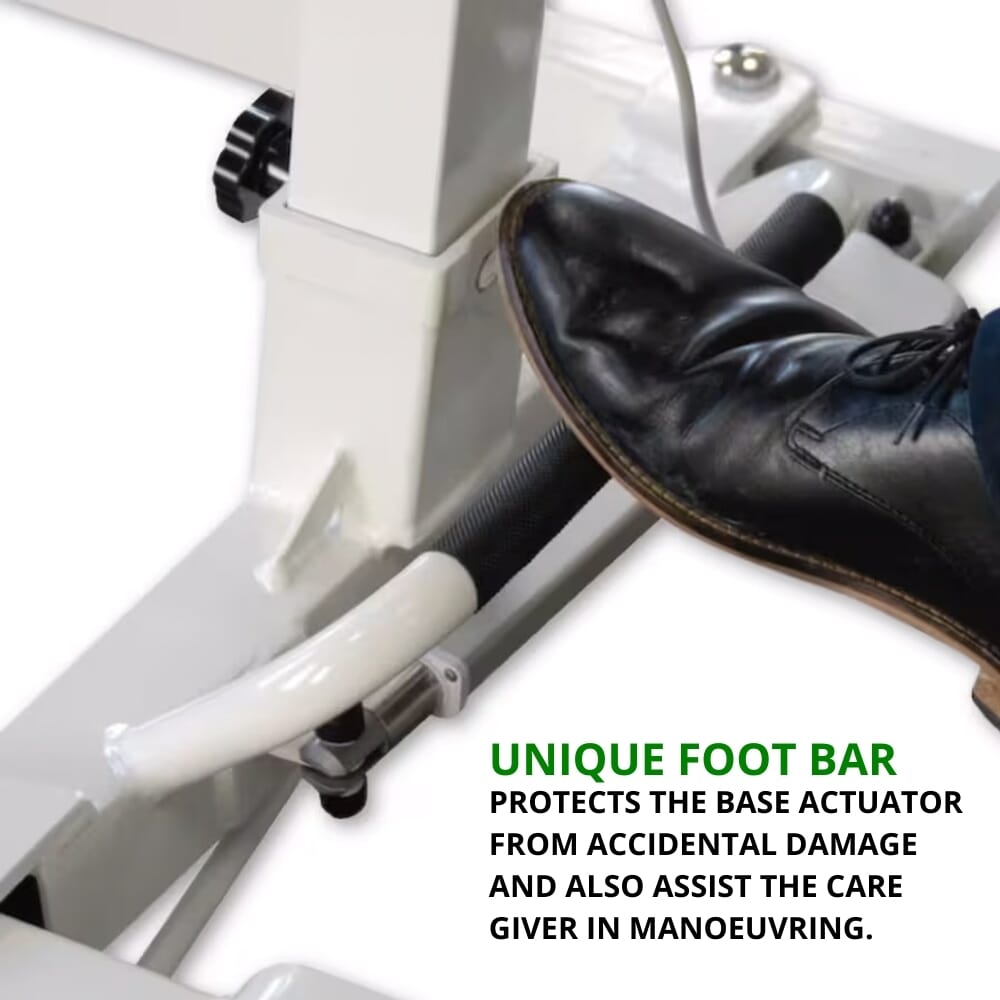

The unique foot bar is a standout feature, protecting the actuator from accidental damage while assisting carers in positioning the hoist. Dual braked rear castors make the hoist easier to manoeuvre and aid in precise positioning.
The tool-free assembly allows for quick and easy setup, making it convenient for recycling or transporting.

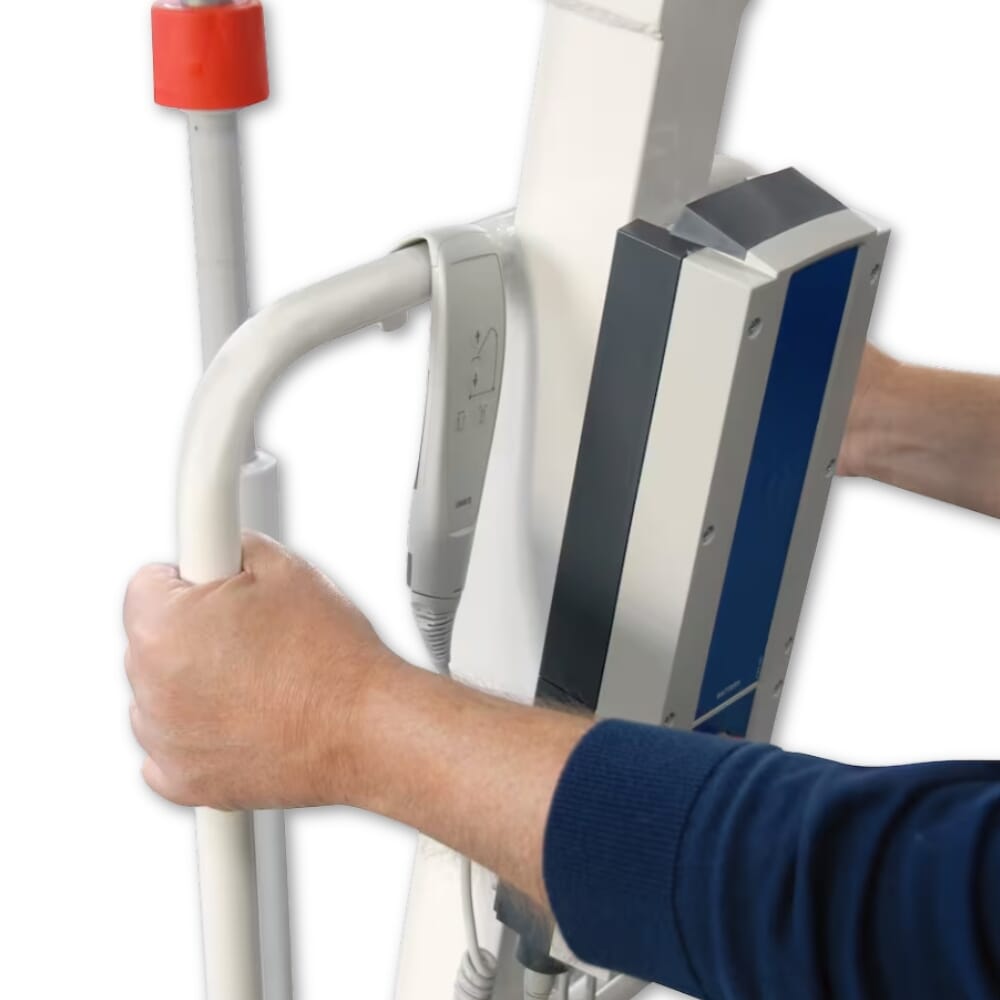

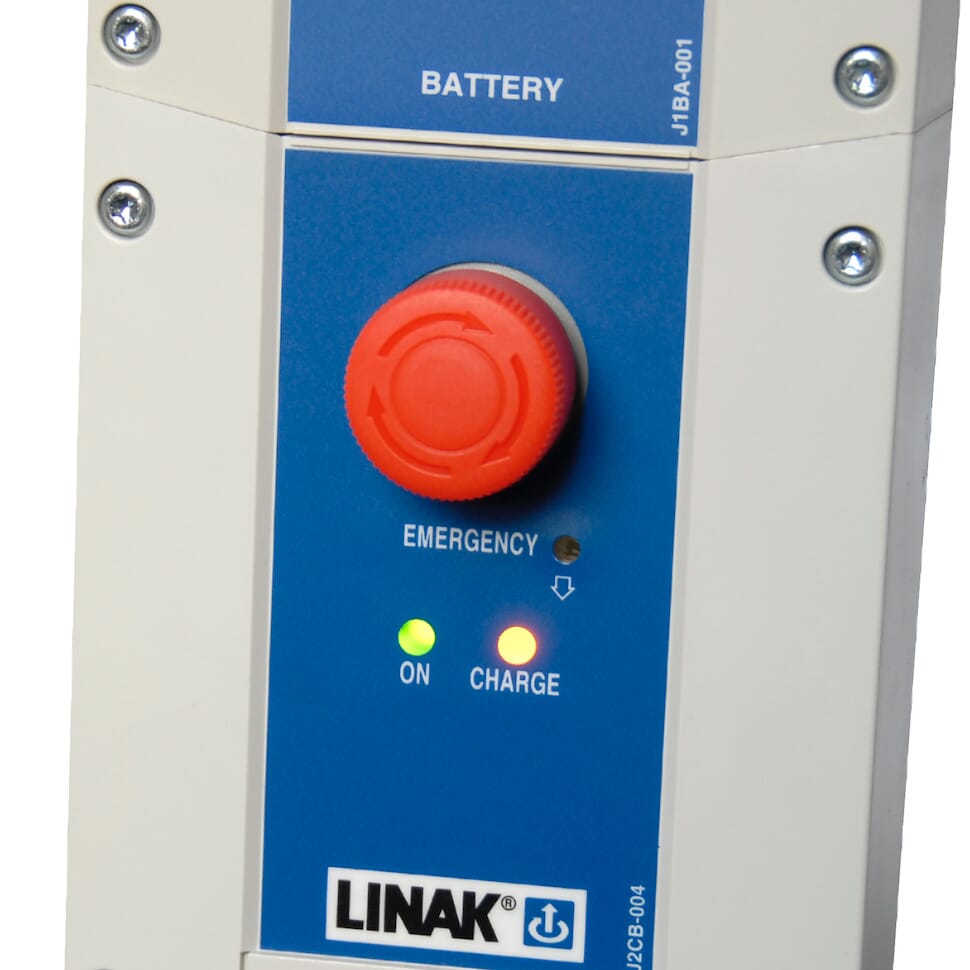

Ease of positioning is further enhanced by the ergonomically designed handle, ensuring all carers can manoeuvre the hoist effortlessly, regardless of their height or stature. The Linak control box keeps it simple with easy-to-see charging lights.

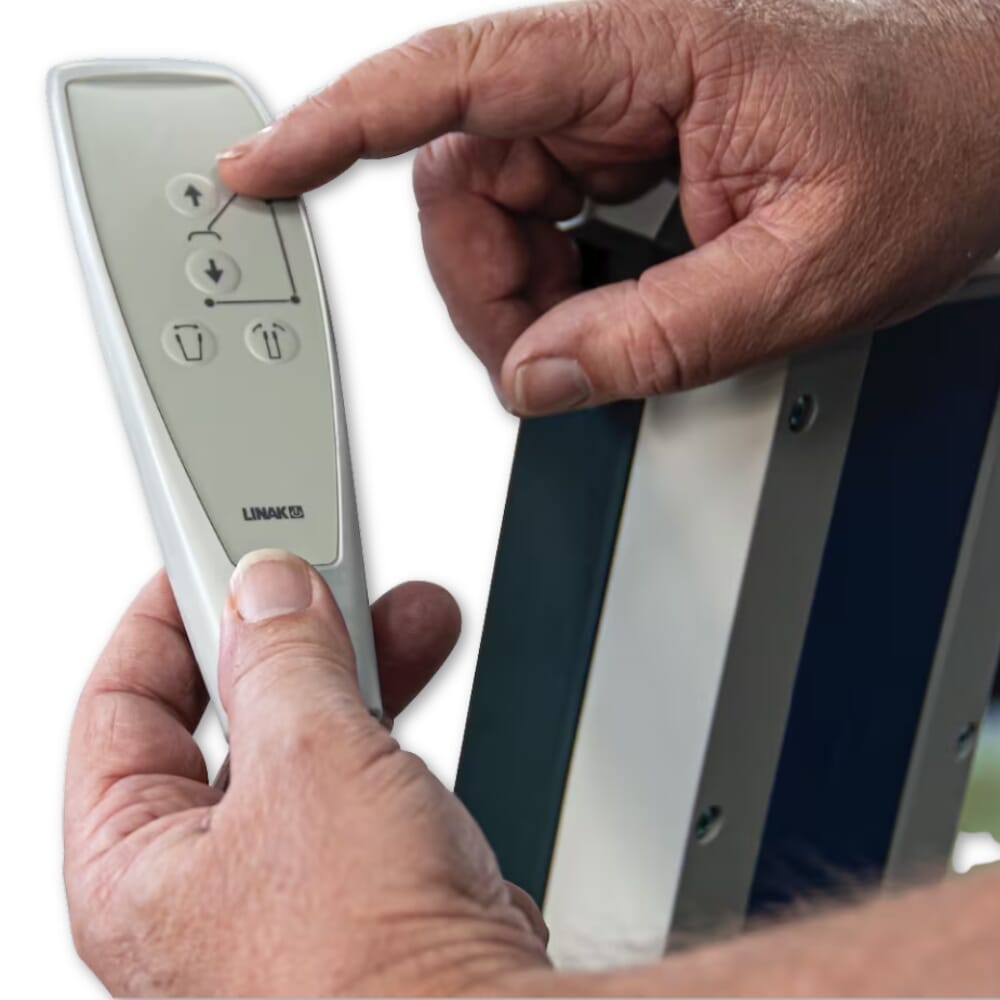

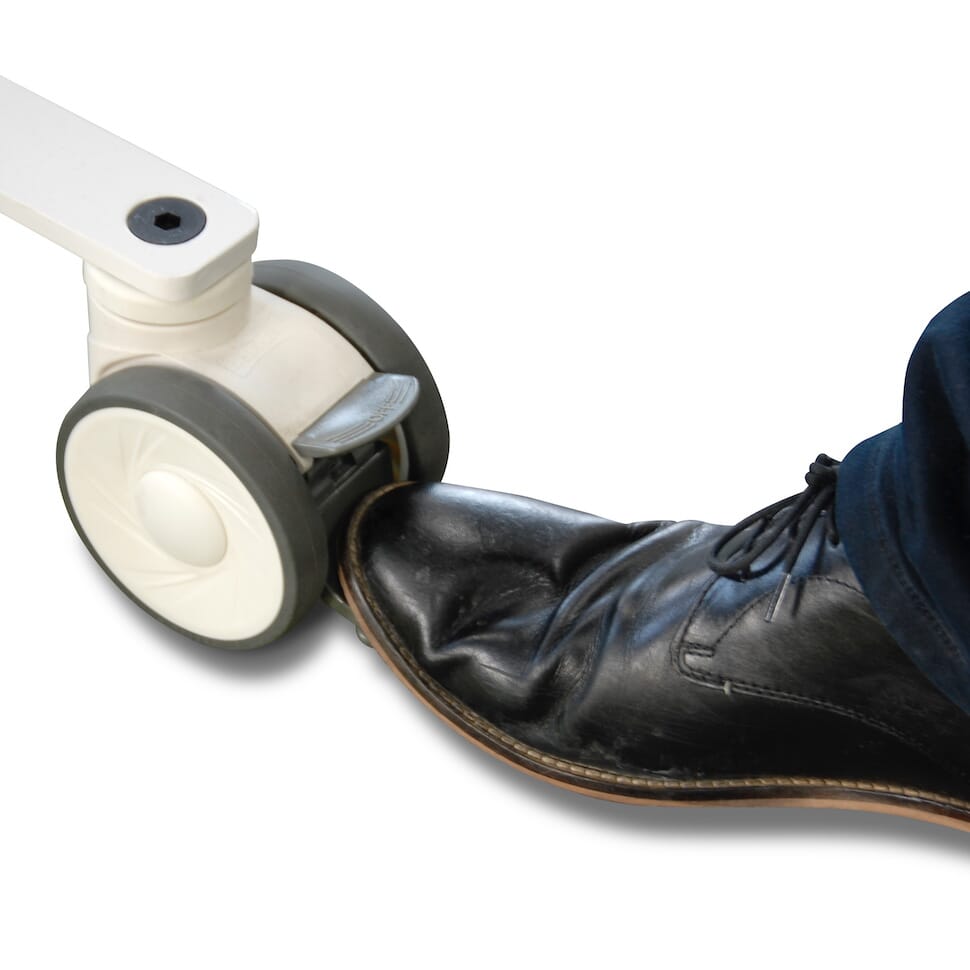

The clear and easy-to-use 4-way handset allows for simple operation of the boom and leg opening with a single touch. The high quality, robust dual brake castors make it easy to apply and disengage the castors during use. The ergonomically designed handset ensures smooth manoeuvrability, regardless of the user's position.
In the event of a discharged battery, the manual emergency lowering system allows for the safe lowering of a client. The unique foot bar not only protects the base actuator from accidental damage but also assists the caregiver in manoeuvring heavy loads when moving the hoist forward.
Key User Benefits
- Excellent Value for Money: This hoist offers amazing value with a full range of features, especially as it includes electric leg opening.
- Enhanced Safety and Control: The Marlin Hoist features an electric leg opening and a unique foot bar, providing carers with excellent control and reducing the risk of strain during transfers.
- User-Friendly Design: The hoist is equipped with a clear and easy-to-use 4-way handset, allowing for simple operation of the boom and leg opening with a single touch, promoting single-handed care.
- Durability and Reliability: Manufactured from high-quality steel with a white powder coating finish, the hoist is robust, easy to clean, and designed for everyday use.
- Convenient and Portable: The tool-free assembly allows for quick setup, making it easy to recycle or transport, while the dual braked rear castors aid in precise positioning and manoeuvrability.
- Emergency Features: The hoist includes an emergency manual lowering system and an easy-to-reach emergency stop button, ensuring safety even in the event of a discharged battery.
Product Specifications

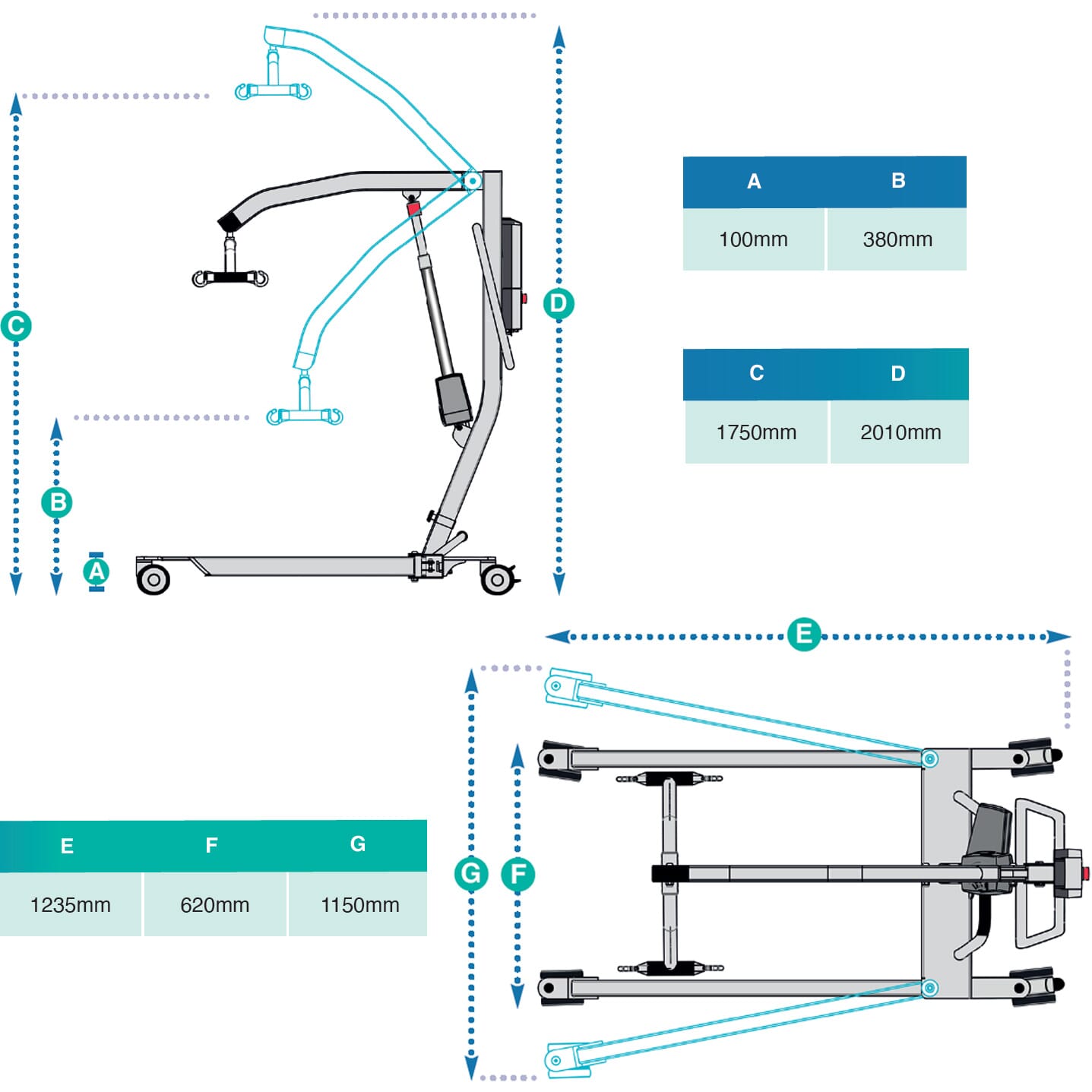

- Length: 1235mm

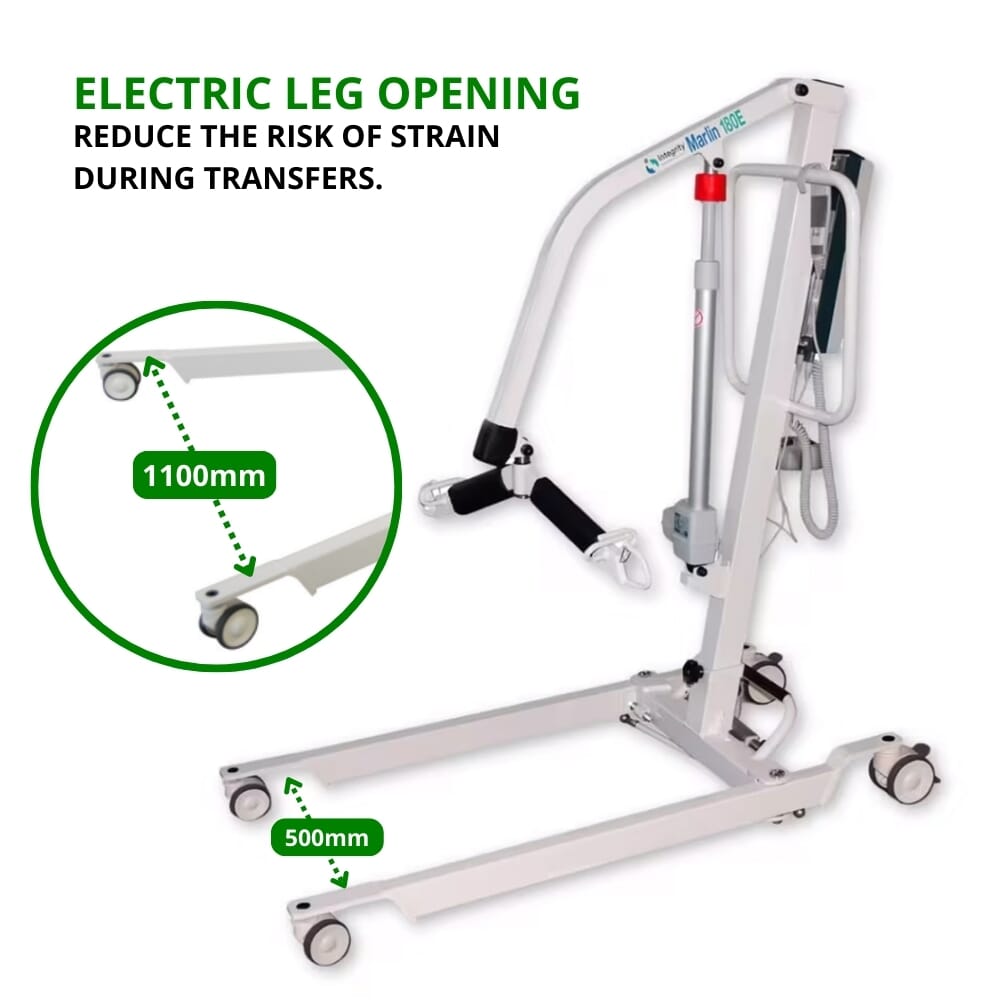

- Width (legs closed): 620mm (with 500mm clearance)
- Width (legs open): 1150mm (with 1100mm clearance)
- Spreader bar lowest height: 380mm

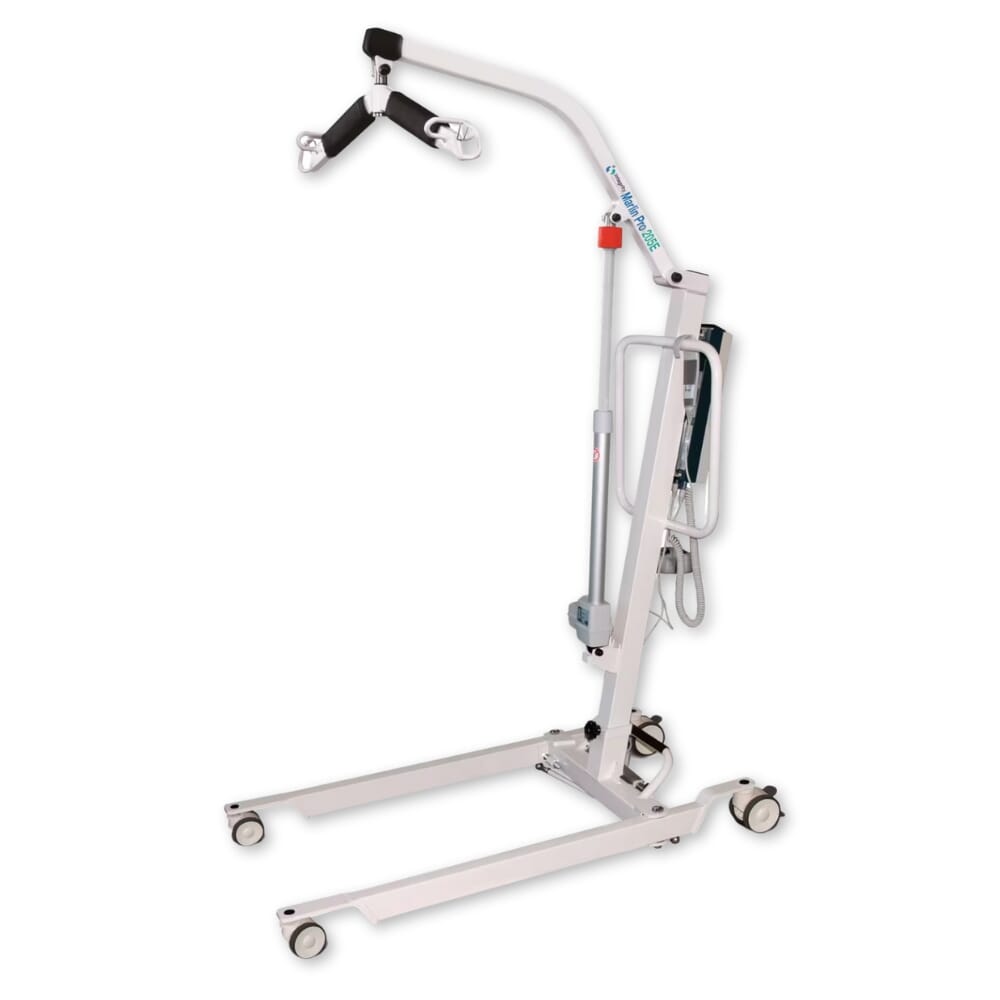

- Spreader bar highest height: 1750mm
- Maximum overall height: 2010mm
- Sling Connection: Looped
- Lift: Electric (Linak LA40 - 8 kN)
- Leg Opening: Electric (Linak LA23 - 2.5 kN)
- Handset Controls: Wired Linak electric hook handset
- Control Box: Standard (no screen)
- Duty Cycle: 15% use, 85% rest
- Battery: Linak 24 V SLA, 2.9 Ah
- Charging Time: 8 hours
- Lifts Per Charge: 30
- IP Rating (controls): IPX4
- IP Rating (battery): IPX5
- Material: Powder coated steel
- Manufacturers Warranty: 5 years (excludes battery which is 1 year)
- Maximum user weight: 180kg (28 stone)
