Oxford Midi 180 Electric Mobile Hoist
Product Details

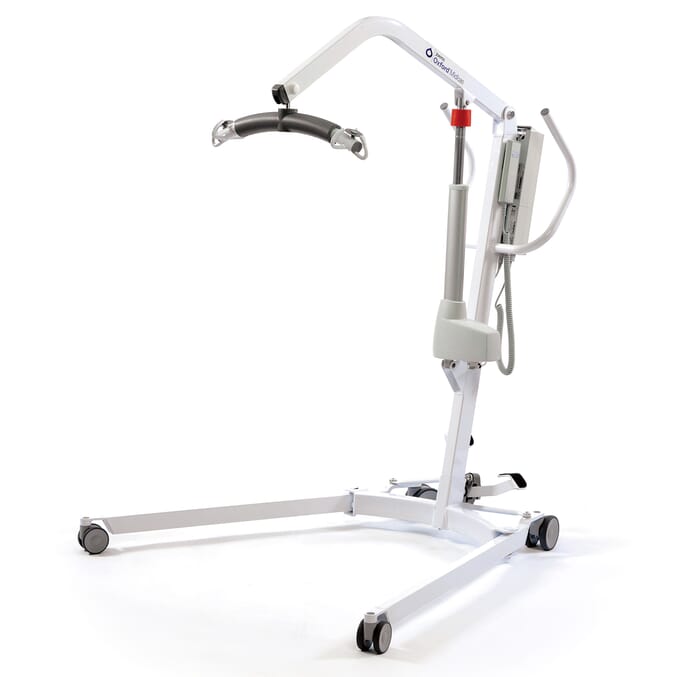

The Oxford Midi 180 Electric Mobile Hoist has established itself as the go-to industry standard in homecare, delivering exceptional performance given its compact size.
With a safe working load of 180kg (28 stone), the Oxford Midi 180 Electric Hoist offers an ideal solution for community and nursing settings, all while accommodating potential space constraints. It boasts a detachable battery pack and a convenient desktop charger for added convenience.
This mobile hoist includes a reliable emergency lowering system with a spring-loaded mechanical device that activates automatically when under load. To initiate a controlled and safe descent, the device must be manually twisted.

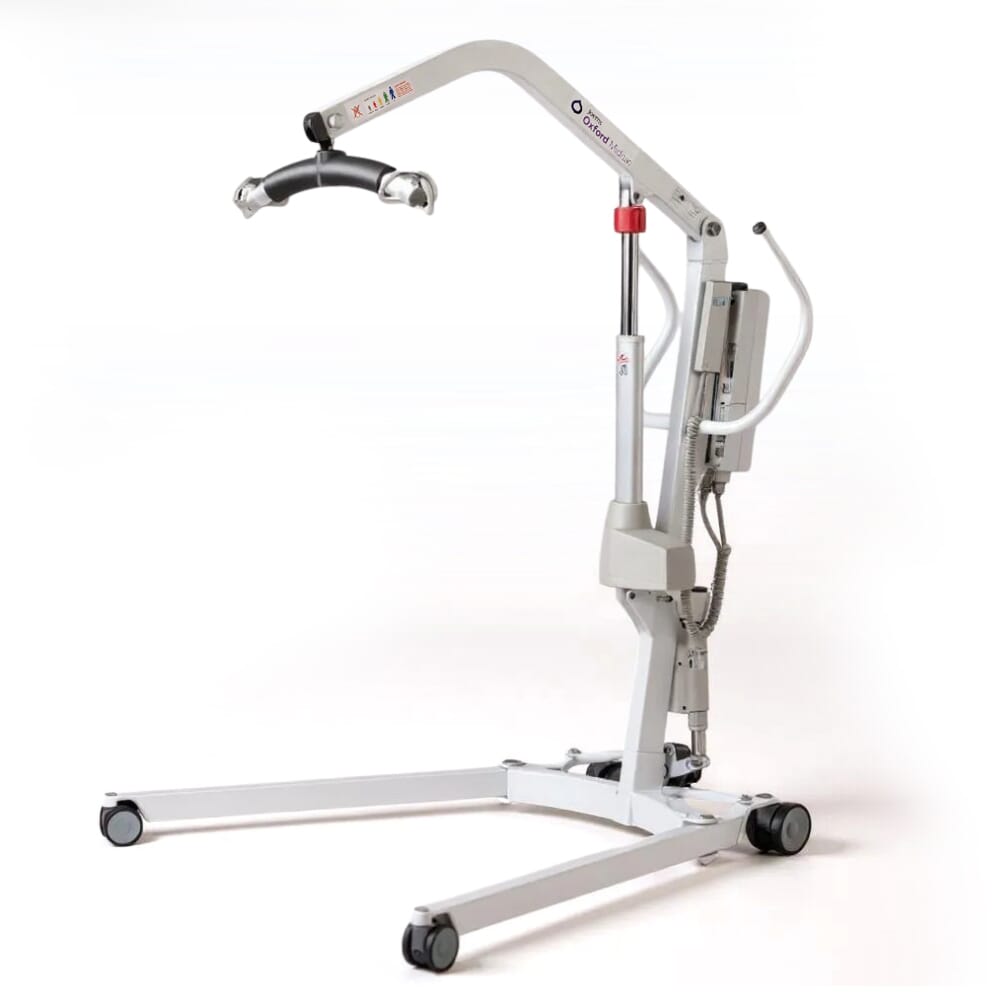

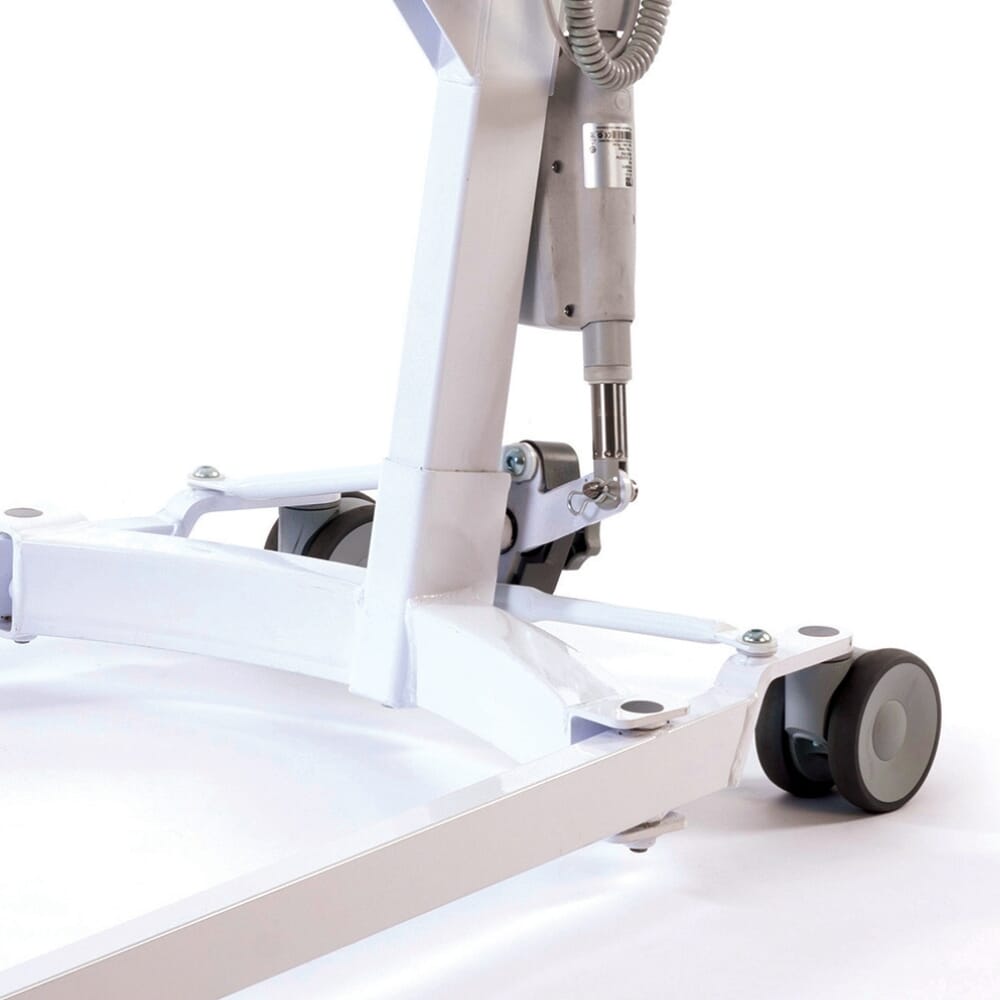

The hoist is available in two versions: one with a manual leg opening operated by an ergonomic foot pedal, and another with an electric leg opening for even greater convenience. The manual version features a secure latch and lock mechanism that keeps the legs firmly in place during use, preventing accidental movement. Both options are designed to allow smooth and controlled adjustment of the leg position, making it easy to navigate around furniture such as beds, chairs, and wheelchairs.
The hoist's low-profile, high-quality castors effortlessly glide beneath most types of furniture and across various surfaces. Additionally, the rear castors feature brakes for enhanced safety during operation.
Designed with practicality in mind, the Oxford Midi 180 Electric Hoist features an angled boom to facilitate floor lifting and a generously sized push handle for effortless manoeuvring. The handheld controller promotes independent patient usage, affording caregivers the freedom to provide support with both hands. To ensure patient safety, the spreader bar is padded.
The Oxford Midi Mobile hoist can be found in two versions in this area of the shop; one with manual leg opening and one with electric leg opening.
If you wish to purchase this product outright, then please click here.
Key User Benefits
- Quality and Reliability: Well-designed and robust for long-lasting performance
- Versatile Use: Suitable for home, hospital, and care environments
- Compact and Manoeuvrable: Easy navigation in tight spaces
- High Weight Capacity: Supports users up to 180kg (28 stone)
- Wide Lifting Range: Effective for elevated and lower transfers without height adjustment
- Safety: Ergonomic push bar for caregiver safety and user-friendly hand control
- Accessibility: Pedal-operated or electric leg opening for easy chair or wheelchair transfers
- Stability: Lockable rear castors and low-profile front castors ensure stability and safety during transfers
Product Specifications
- Mobile Hoist length: 1225mm (49.5")
- External width (legs open): 1170mm (46")
- Internal width (legs open): 1070mm (42")
- External width (legs closed): 600mm (23.5")
- Internal width (legs closed): 540mm (21.5")
- Overall height of legs: 100mm (4")
- Maximum overall height: 1840mm (72.5")
- Minimum overall height: 1240mm (49")
- Maximum spreader bar height: 1660mm (65")
- Minimum spreader bar height: 525mm (20.5")
- Spreader bar height at maximum reach: 1060mm (42")
- Spreader bar reach at maximum height: 420mm (16.5")
- Spreader bar reach at minimum height: 440mm (17.5")
- Maximum reach: 655mm (26")
- Turning radius: 1235mm (48.5")
- Front castors diameter: 75mm (3")
- Rear castors diameter: 100mm (4")
- Battery type: 2 x 12v rechargeable
- Battery capacity: 3.2 amp per hour
- Mast and boom weight: 20.5kg (45 lbs)
- Base weight: 11.5kg (25 lbs)
- Mobile hoist weight: 32kg (70 lbs)
- Maximum user weight: 180kg (28 stone)
