SmartCare Lever Shower - White & Silver
Product Details

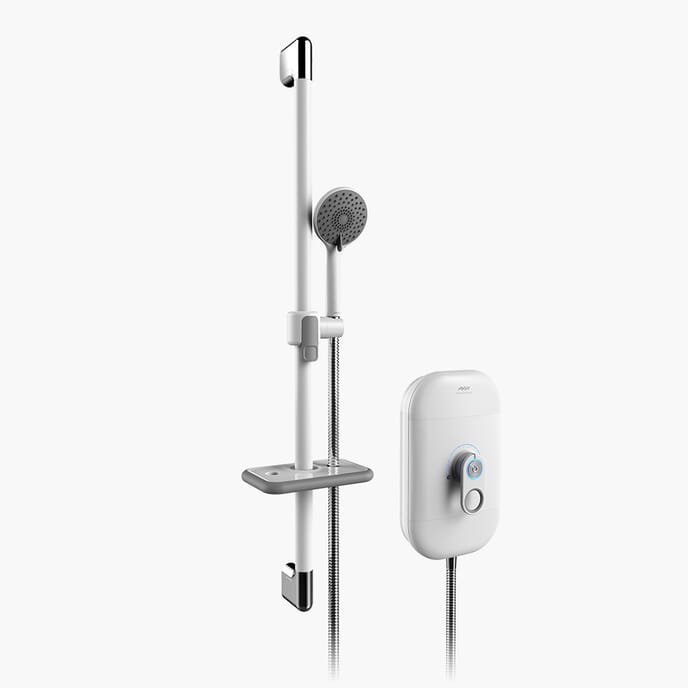

The SmartCare Lever Shower is designed to transform showering into a more comfortable and less stressful experience for those living with dementia, visual impairments, or limited dexterity. This electric shower is equipped with a 2m anti-kink smooth hose, a 1m riser rail, and an easy adjust shower head, catering to a variety of clinical needs. With a 5-year warranty as standard, it offers peace of mind and reliability.
Featuring an easy-to-use lever handle with a contrasting mid-grey, soft-touch insert, this shower is ideal for individuals with limited dexterity. The audible temperature control beeps and reactive digital LED temperature display make it easier for those with visual impairments to select their desired settings. Additionally, the contrasting tactile letters, power symbol, and pointer on the lever, along with raised dot markers at the lowest and hottest temperature settings, further assist users with visual challenges.

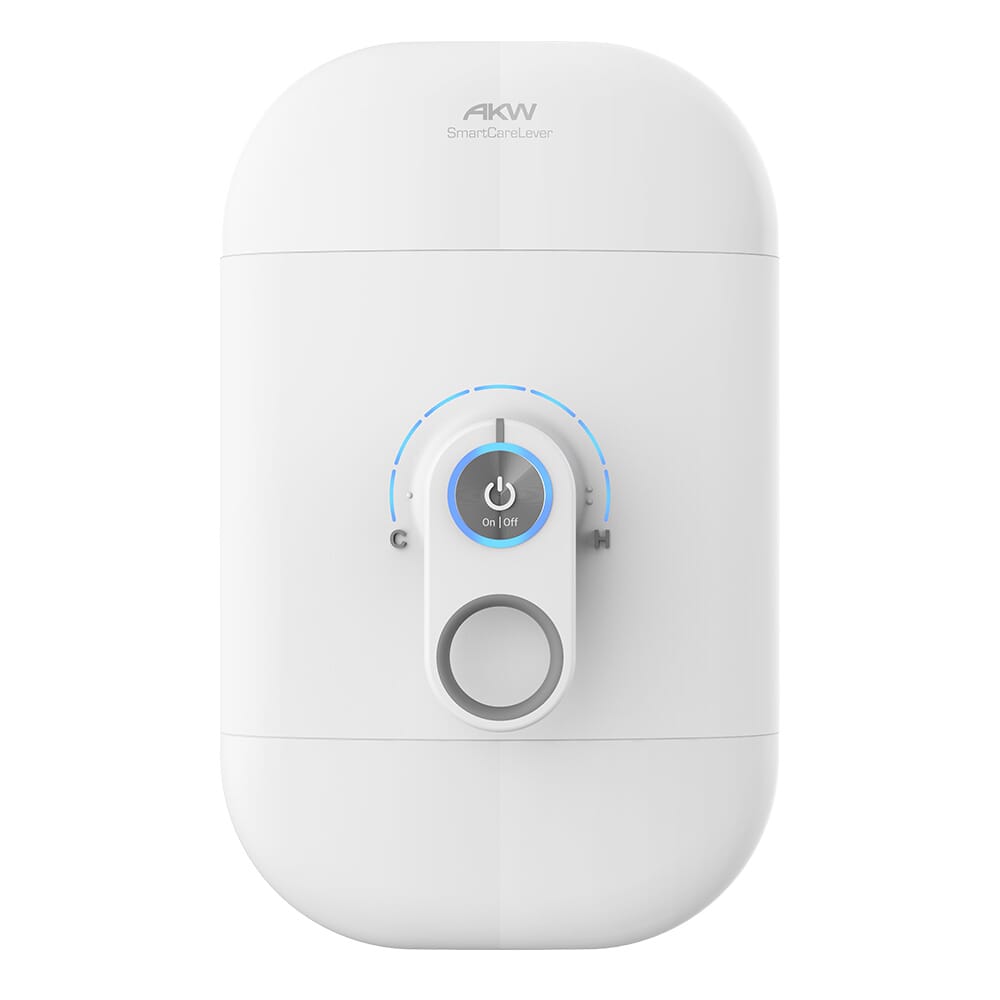

The central control panel boasts a matt, anti-glare finish, which is beneficial for people with visual impairments and dementia. Rounded surfaces and edges are incorporated to reduce the risk of injury in the event of a trip or fall. The AKW SmartCare Lever is BEAB Care certified, RNIB tried and tested, and accredited as a dementia-friendly product by DSDC, ensuring it meets high standards of safety and usability.
With thermostatically stabilised temperature control and a maximum water temperature protection feature, the shower unit is safeguarded against overheating. The eco setting, which limits the flow rate to 6 litres per minute, supports the reduction of water and energy consumption. This is the default setting but can be overridden during installation. An automatic shutdown feature, with options for 5, 10, 20, or 30 minutes, prevents flooding and minimises water and energy wastage.
The phased shutdown ensures a safe and reliable start-up and performance, while patented safety features provide additional security. For added convenience, an optional wall-mounted remote on/off button is available separately, allowing users or carers to control the shower from up to 10m away. The AKW SmartCare Lever is a practical and considerate choice for enhancing the showering experience of elderly or disabled individuals.
An optional wall-mounted on-off button is available separately in this category which can control the shower from up to 10m away.
Key User Benefits
- Easy-to-use lever handle with contrasting midgrey, soft-touch insert, ideal for people with limited dexterity
- Audible temperature control beeps and reactive digital LED temperature display indicate settings selection for people with visual impairment
- Contrasting tactile letters, power symbol, and pointer on the lever, as well as raised dot markers situated by the lowest and hottest temperature settings assist people with visual impairment
- Matt, anti-glare finish central control panel aids people with visual impairment and dementia
- Rounded surfaces and edges reduce the risk of injury in the event of a trip or fall
- BEAB Care certified, RNIB tried and tested, and DSDC dementia-friendly product accredited
- Thermostatically stabilised temperature
- Maximum water temperature protection with thermal cut-out device to protect shower unit from overheating
- Eco setting limits flow rate to 6 litres per minute to support reduction of water and energy consumption; this is the default setting and can be overridden during installation
- Automatic shutdown (5, 10, 20 or 30 mins) prevents flooding and minimises water and energy wastage
- Phased shutdown ensures a safe, reliable start up and performance
- Patented safety features
- An optional wall-mounted remote on/off button allows users/carers to turn the shower on/off from up to 10m away (available separately)
Product Specifications
- 8 electrical/8 water entry points
- Dual power blocks for left or right hand wiring
- Plumbing Supply
- Supply Source: Mains pressure cold water only
- Minimum Dynamic Pressure: 50kPa (0.5 Bar)
- Maximum Static Pressure: 1000kPa (10 Bar)
- Optimal Minimum Dynamic Pressure: 100kPa (1 Bar) (Recommended to ensure high performance)
- Maximum Inlet Temperature: 28°C
- Minimum Inlet Temperature: 2°C
- Inlet Connection: 15mm pipe
- Outlet Connection: 1/2” BSP Male Thread Fitting
- Water Ingress Rating: IPX4
- Shower Drain Pump Connections: Suitable for AKW M Series (Internal flow sensor or wireless)
- Electricity Supply
- Nominal Rating at 240 V: 9.5kW & 8.5kW
- Supply Fuse / Circuit Breaker: (9.5kW 40/45A) & (8.5kW 35/40A)
- Residual Current Device (RCD): 30 mA (must be fitted)
- Supply Cable: Refer to current wiring regulations and BS 7671 to determine minimum cable size. No larger than 10mm2
- Isolation Switch (e.g. Pull Cord): 45 Amp Double pole
- Water and Cable Entry Points: Top, bottom or back
- Physical
- Height: 380mm
- Width: 230mm
- Depth: 85mm
- Footprint Height: 345mm
- Footprint Width: 210mm
- Water and Cable Entry Points: Top, bottom or back
- Shower Drain Pump Connections: Suitable for AKW M Series (flow sensor or wireless), D4 (Flow Sensor) or AKW A4 (Flow Switch)
- BEAB CARE Certified
- RNIB Tried and Tested
- WRAS Approved
- DSDC Accredited
